Connect Ethernet

The grandMA2 console has two Ethernet ports on its rear panel.

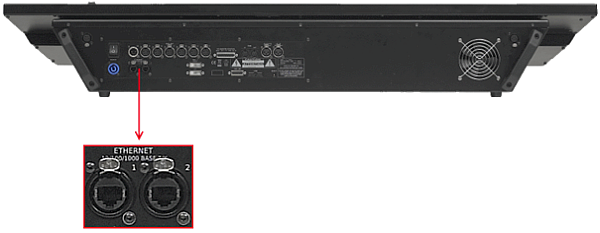

Location Ethernet ports



Ethernet Port 1

Information:
The Ethernet port 1 is called eth0 in the grandMA2 software.

Information:
The Ethernet port 1 can be used for the following network protocols:
- MA-Net2
- ETC Net2
- Pathport
- sACN
- Shownet
- Kinet1
- CITP
- PSN

Requirement:
STP (shielded twisted pair) cable with RJ45 connector, min. Cat 5e.

To connect Ethernet port 1:

1. Connect one end of an Ethernet cable to the Ethernet 1 port.
2. Connect the other end to a suitable switch.
3. Connect other grandMA2 equipment to the switch and turn on the power on the switch.

Ethernet is connected to port 1.

Ethernet Port 2

Information:
The Ethernet port 2 is called eth1 in the grandMA2 software.

Information:
The Ethernet port 2 can be used for the following network protocols:
- Art-Net
- CITP

Information:
The IP address is set by default in a 2.x.x.x range. An IP address is required in a 2.x.x.x or 10.x.x.x range for Art-Net.

Requirement:
STP (shielded twisted pair) cable with RJ45 connector, min. Cat 5e.

To connect Ethernet port 2:

1. Connect one end of a Ethernet cable to the Ethernet 2 port.
2. Connect the other end to a suitable switch.
3. Connect other grandMA2 equipment to the switch and turn on the power on the switch.

Ethernet is connected to port 2.
