Technical Data


	Important: The grandMA3 full-size, grandMA3 light and their CRV versions have a built-in uninterruptible power supply (UPS). For more information on UPS see Safety.


	Important: Only use adequately protected power cables (min. Ø = 3 x 1.0 mm²). The required power cable must meet the country’s standards. Only qualified personnel is allowed to perform work on the power cable! Only use monitors with a native DisplayPort connector. Do not use adapters, for example DP to VGA or similar.


	Important: Power cable and connector are not included in the delivery.

DMX: max. length of the cable 350 m (in ideal conditions).
Use CAT-5e Ethernet cable or higher. Max. length of the cable 75 m.

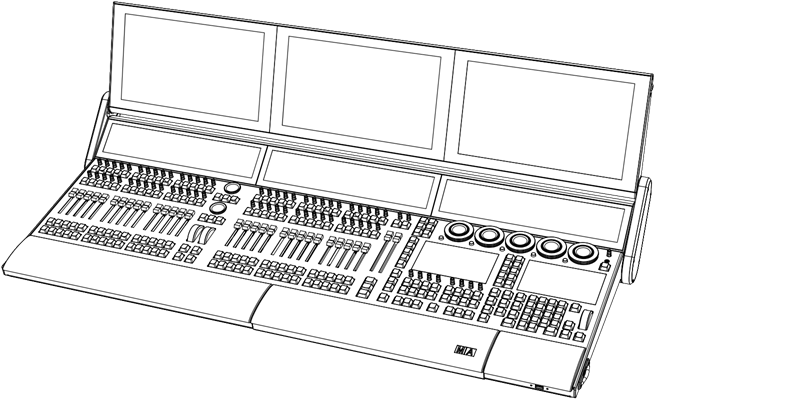

grandMA3 full-size

Technical Data
Parameters	20 480
Operating voltage	100-240 V AC, 50/60 Hz
Net weight	44 kg / 98 lbs
Power	max. 300 VA
Dimensions (folded and closed keyboard drawer)	1 256 x 539 x 181 mm / 50 x 22 x 8 in (width x depth x height)
Dimensions (unfolded for operation)	1 256 x 584 x 409 (max. 450) mm / 50 x 23 x 17 (max. 18) in (width x depth x height)
Dimensions (maximally unfolded and opened keyboard drawer)	1 256 x 871 x 255 mm / 50 x 35 x 10 in (width x depth x height)

Outputs grandMA3 full-size

grandMA3 full-size – rear panel

Number	Connector
1 x	powerCON TRUE1*
3 x	etherCON/RJ45
6 x	DMX512-A Out (5pin XLR female)
1 x	DMX512-A In (5pin XLR male)
1 x	MIDI In (5pin DIN female)
1 x	MIDI Out (5pin DIN female)
1 x	LTC – Linear Time Code (3pin XLR female)
1 x	Audio In (3pin XLR female)
1 x	GPI – General Purpose Input (D-SUB DE9 female – remote control)
2 x	DisplayPort 1.2 (external screens)
2 x	S/PDIF In and Out
3 x	USB 2.0 (type A) max. 500 mA
3 x	USB 3.0 (type A) (2 on the front panel) max. 900 mA
2 x	Desk light (4pin XLR female)

*registered trademark of Neutrik AG, Liechtenstein

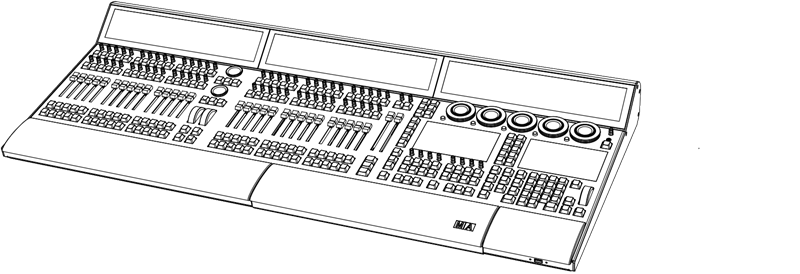

grandMA3 full-size CRV

Technical Data
Parameters	20 480
Operating voltage	100-240 V AC, 50/60 Hz
Net weight	33 kg / 73 lbs
Power	max. 300 VA
Dimensions (closed keyboard drawer)	1 213 x 539 x 169 mm / 48 x 22 x 7 in (width x depth x height)
Dimensions (opened keyboard drawer)	1 213 x 644 x 169 mm / 48 x 26 x 7 in (width x depth x height)

Outputs grandMA3 full-size CRV

grandMA3 full-size CRV – rear panel

Number	Connector
1 x	powerCON TRUE1*
3 x	etherCON/RJ45
6 x	DMX512-A Out (5pin XLR female)
1 x	DMX512-A In (5pin XLR male)
1 x	MIDI In (5pin DIN female)
1 x	MIDI Out (5pin DIN female)
1 x	LTC – Linear Time Code (3pin XLR female)
1 x	Audio In (3pin XLR female)
1 x	GPI – General Purpose Input (D-SUB DE9 female – remote control)
5 x	DisplayPort 1.2 (external screens)
2 x	S/PDIF In and Out
3 x	USB 2.0 (type A) max. 500 mA
3 x	USB 3.0 (type A) (2 on the front panel) max. 900 mA
2 x	Desk light (4pin XLR female)

*registered Trademark of Neutrik AG, Liechtenstein

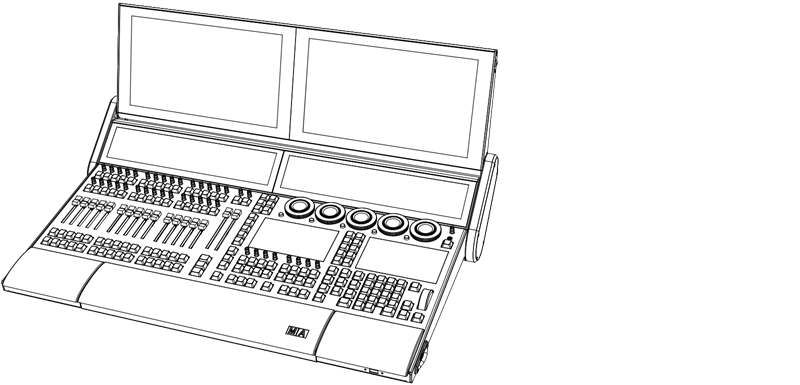

grandMA3 light

Technical Data
Parameters	16 384
Operating voltage	100-240 V AC, 50/60 Hz
Net weight	33 kg / 73 lbs
Power	max. 300 VA
Dimensions (folded and closed keyboard drawer)	854 x 539 x 181 mm / 34 x 22 x 8 in (width x depth x height)
Dimensions (unfolded for operation)	854 x 584 x 409 (max. 450) mm / 34 x 23 x 17 (max. 18) in (width x depth x height)
Dimensions (maximally unfolded and opened keyboard drawer)	854 x 871 x 255 mm / 34 x 35 x 10 in (width x depth x height)

Outputs grandMA3 light

grandMA3 light – rear panel

Number	Connector
1 x	powerCON TRUE1*
3 x	etherCON/RJ45
6 x	DMX-512-A Out (5pin XLR female)
1 x	DMX-512-A In (5pin XLR male)
1 x	MIDI In (5pin DIN female)
1 x	MIDI Out (5pin DIN female)
1 x	LTC – Linear Time Code (3pin XLR female)
1 x	Audio In (3pin XLR female)
1 x	GPI – General Purpose Input (D-SUB DE9 female – remote control)
2 x	DisplayPort 1.2 (external screens)
2 x	S/PDIF In and Out
3 x	USB 2.0 (type A) max. 500 mA
3 x	USB 3.0 (type A) (2 on the front panel) max. 900 mA
2 x	Desk light (4pin XLR female)

*registered Trademark of Neutrik AG, Liechtenstein

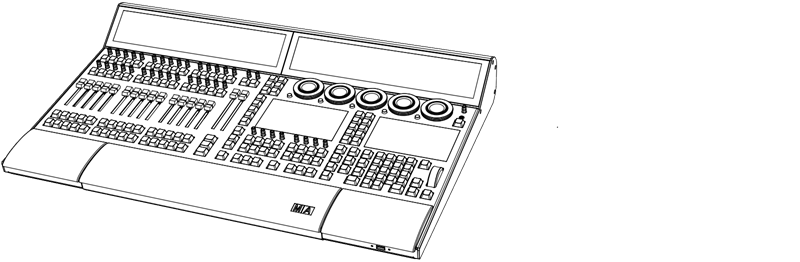

grandMA3 light CRV

Technical Data
Parameters	16 384
Operating voltage	100-240 V AC, 50/60 Hz
Net weight	25 kg / 56 lbs
Power	max. 300 VA
Dimensions (closed keyboard drawer)	811 x 539 x 169 mm / 32 x 22 x 7 in (width x depth x height)
Dimensions (opened keyboard drawer)	811 x 644 x 169 mm / 32 x 26 x 7 in (width x depth x height)

Outputs grandMA3 light CRV

grandMA3 light CRV – rear panel

Number	Connector
1 x	powerCON TRUE1*
3 x	etherCON/RJ45
6 x	DMX-512-A Out (5pin XLR female)
1 x	DMX-512-A In (5pin XLR male)
1 x	MIDI In (5pin DIN female)
1 x	MIDI Out (5pin DIN female)
1 x	LTC – Linear Time Code (3pin XLR female)
1 x	Audio In (3pin XLR female)
1 x	GPI – General Purpose Input (D-SUB DE9 female – remote control)
4 x	DisplayPort 1.2 (external screens)
2 x	S/PDIF In and Out
3 x	USB 2.0 (type A) max. 500 mA
3 x	USB 3.0 (type A) (2 on the front panel) max. 900 mA
2 x	Desk light (4pin XLR female)

*registered Trademark of Neutrik AG, Liechtenstein

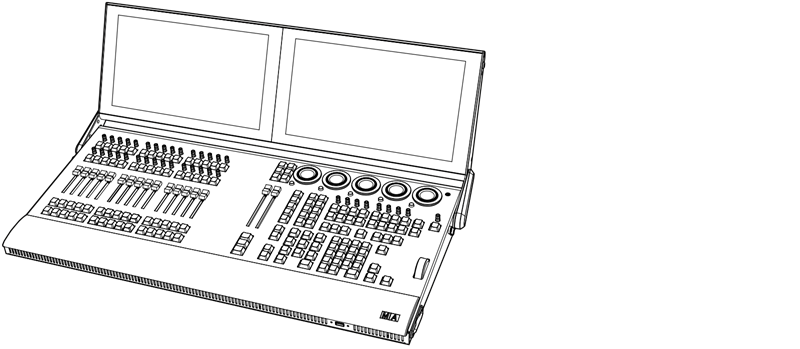

grandMA3 compact XT

Technical Data
Parameters	8 192
Operating voltage	100-240 V AC, 50/60 Hz
Net weight	20 kg / 45 lbs
Power	max. 250 VA
Dimensions (folded)	845 x 429 x 160 mm / 34 x 17 x 7 in (width x depth x height)
Dimensions (unfolded)	845 x 563 x 325 (max. 410) mm / 34 x 23 x 13 (max. 17) in (width x depth x height)

Outputs grandMA3 compact XT

grandMA3 compact XT – rear panel

Number	Connector
1 x	powerCON TRUE1*
3 x	etherCON/RJ45
6 x	DMX-512-A Out (5pin XLR female)
1 x	DMX-512-A In (5pin XLR male)
1 x	MIDI In (5pin DIN female)
1 x	MIDI Out (5pin DIN female)
1 x	LTC – Linear Time Code (3pin XLR female)
1 x	Audio In (3pin XLR female)
1 x	GPI – General Purpose Input (D-SUB DE9 female – remote control)
1 x	DisplayPort 1.2 (external screen)
2 x	S/PDIF In and Out
3 x	USB 2.0 (type A) max. 500 mA
2 x	USB 3.0 (type A) (1 on the front panel) max. 900 mA
1 x	Desk light (4pin XLR female)

*registered Trademark of Neutrik AG, Liechtenstein

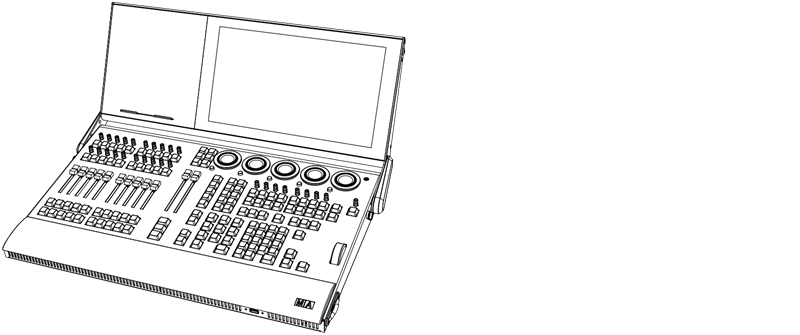

grandMA3 compact

Technical Data
Parameters	8 192
Operating voltage	100-240 V AC, 50/60 Hz
Net weight	16 kg / 36 lbs
Power	max. 250 VA
Dimensions (folded)	661 x 429 x 160 mm / 26 x 17 x 7 in (width x depth x height)
Dimensions (unfolded)	661 x 563 x 325 (max. 410) mm / 26 x 23 x 13 (max. 17) in (width x depth x height)

Outputs grandMA3 compact

grandMA3 compact – rear panel

Number	Connector
1 x	powerCON TRUE1*
3 x	etherCON/RJ45
6 x	DMX-512-A Out (5pin XLR female)
1 x	DMX-512-A In (5pin XLR male)
1 x	MIDI In (5pin DIN female)
1 x	MIDI Out (5pin DIN female)
1 x	LTC – Linear Time Code (3pin XLR female)
1 x	Audio In (3pin XLR female)
1 x	GPI – General Purpose Input (D-SUB DE9 female – remote control)
1 x	DisplayPort 1.2 (external screen)
2 x	S/PDIF In and Out
3 x	USB 2.0 (type A) max. 500 mA
2 x	USB 3.0 (type A) (1 on the front panel) max. 900 mA
1 x	Desk light (4pin XLR female)

*registered Trademark of Neutrik AG, Liechtenstein

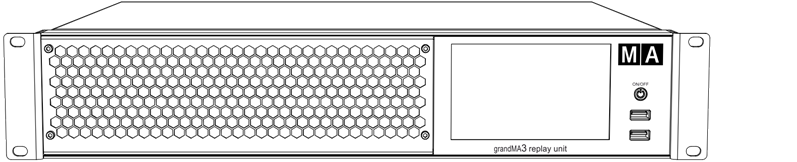

grandMA3 replay unit

Technical Data
Parameters	8 192
Operating voltage	100-240 V AC, 50/60 Hz
Net weight	6 kg / 14 lbs
Power	max. 200 VA
Dimensions	482 x 372 x 87 mm / 19 x 15 x 4 in (width x depth x height)

Outputs grandMA3 replay unit

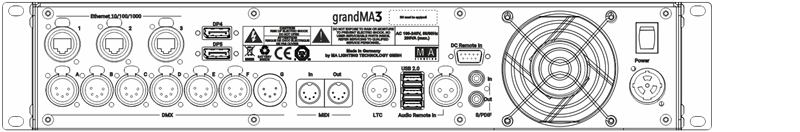

grandMA3 replay unit – rear panel

Number	Connector
1 x	powerCON TRUE1*
3 x	etherCON/RJ45
6 x	DMX512-A Out (5pin XLR female)
1 x	DMX512-A In (5pin XLR male)
1 x	MIDI In (5pin DIN female)
1 x	MIDI Out (5pin DIN female)
1 x	LTC – Linear Time Code (3pin XLR female)
1 x	Audio In (3pin XLR female)
1 x	GPI – General Purpose Input (D-SUB DE9 female – remote control)
2 x	DisplayPort 1.2 (external screens)
2 x	S/PDIF In and Out
5 x	USB 2.0 (type A) (2 on the front panel) max. 500 mA

*registered Trademark of Neutrik AG, Liechtenstein

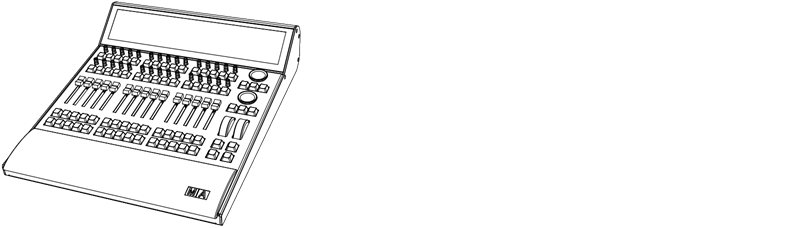

grandMA3 extension

Technical Data
Parameters	None
Operating voltage	100-240 V AC, 50/60 Hz
Net weight	11 kg / 25 lbs
Power	max. 75 VA
Dimensions	409 x 537 x 169 mm / 17 x 22 x 7 in (width x depth x height)

Outputs grandMA3 extension

grandMA3 extension - rear panel

Number	Connector
1 x	powerCON TRUE1*
1 x	etherCON/RJ45
1 x	Desk light (4pin XLR female)

*registered Trademark of Neutrik AG, Liechtenstein
