Connect Ethernet

Depending on the grandMA3 device type, there are up to three Ethernet ports on the rear panel. To set the IP addresses for the Ethernet ports, see Interfaces and IP.

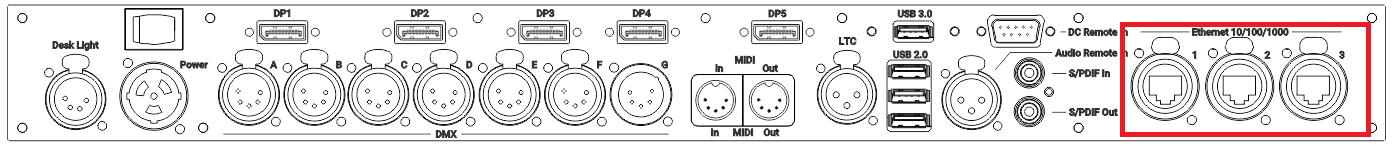

_grandMA3 full-size (CRV) and light (CRV) rear panel – _Ethernet

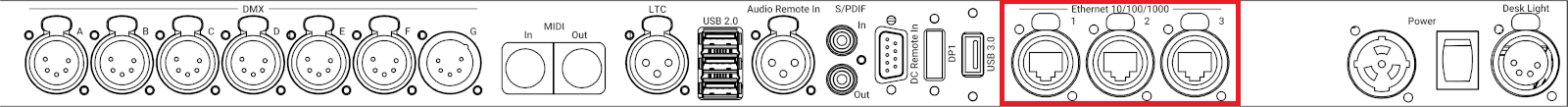

_grandMA3 compact (XT) rear panel – _Ethernet

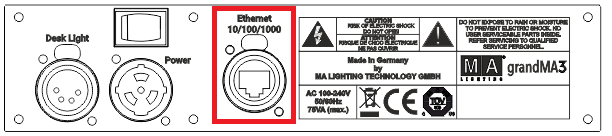

_grandMA3 extension rear panel – _Ethernet

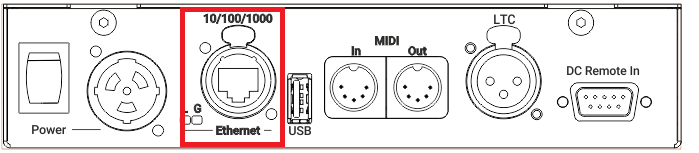

_grandMA3 I/O Node rear panel – _Ethernet

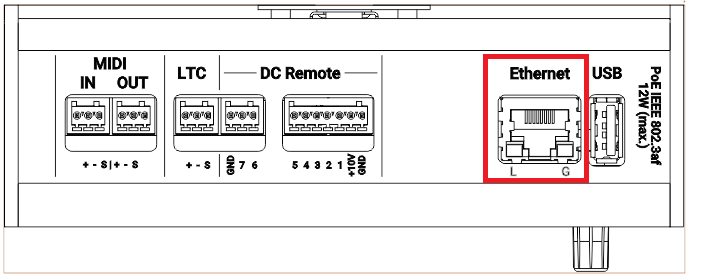

_grandMA3 I/O Node DIN-Rail rear panel – _Ethernet

	Hint:
	The naming of the Ethernet ports is individual; for example, the console shows Con1, Con2, and Con3. In the onPC software, the Ethernet ports are named by the operating system, for example Ethernet, Ethernet 2, etc.
