Connect USB Devices

You can connect an external USB flash drive, USB hard drive, USB mouse, USB keyboard, or external touchscreen to the grandMA3 device via its USB ports.

Depending on the type of the grandMA3 device, there are up to 6 USB connectors:

  • 1x USB 3.0 at the front, on the right of the console
  • 1x USB 3.0 inside the keyboard drawer
  • 3x USB 2.0 and 1x USB 3.0 on the rear panel

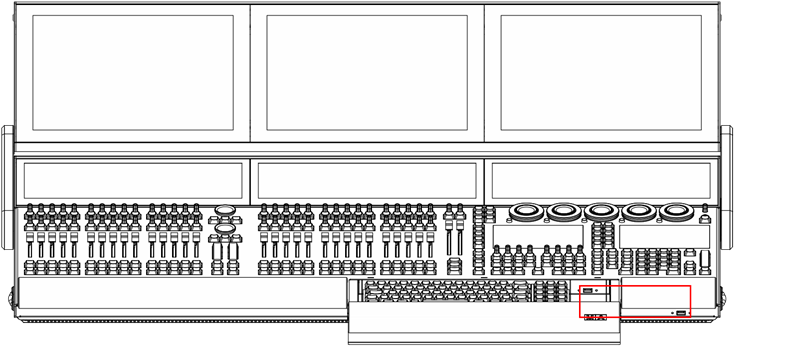

grandMA3 full-size USB 3.0 (type A)_ inside keyboard drawer and on the right_

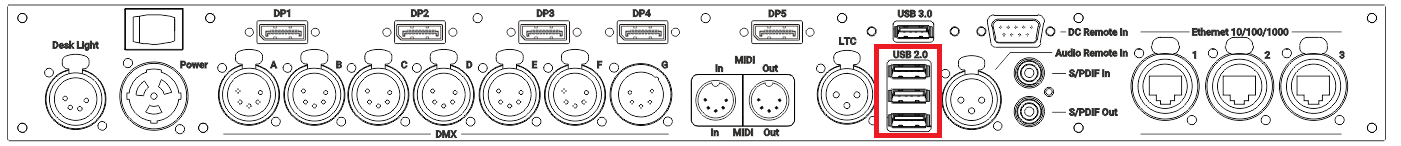

_grandMA3 full-size (CRV) rear panel USB 2.0 _(type A)

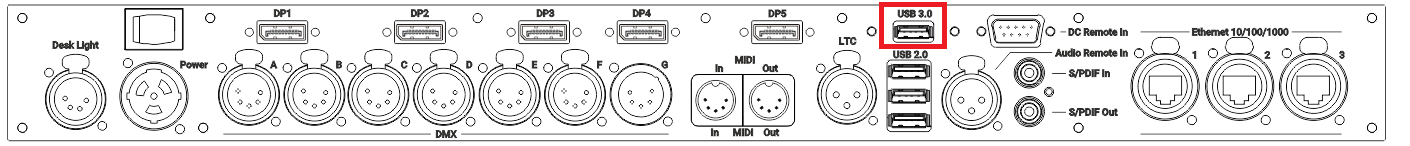

grandMA3 full-size rear panel USB 3.0 (type A)

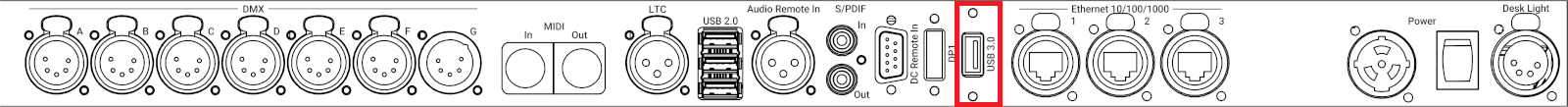

_grandMA3 compact (XT) rear panel USB 3.0 _(type A)



To connect a grandMA3 onPC device with the computer or laptop, use the USB connector (type B):

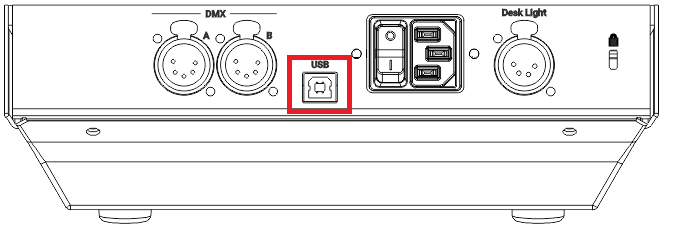

grandMA3 onPC fader wing rear panel USB 2.0 (type B)

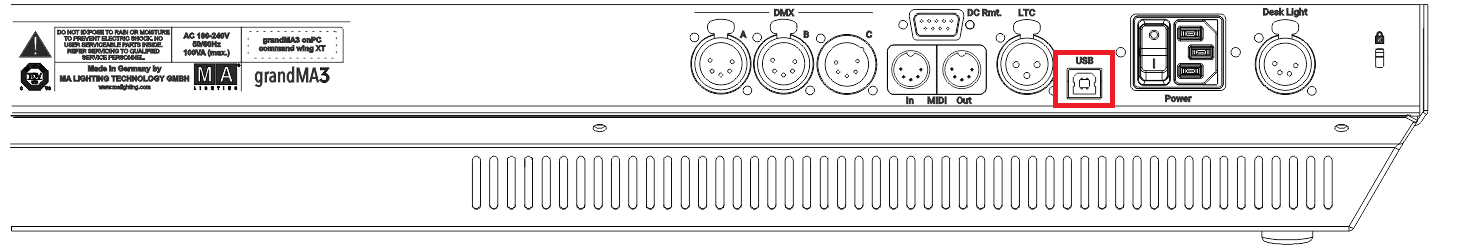

grandMA3 onPC command wing rear panel USB 2.0 (type B)
