Connect Desk Light

The grandMA3 comes with one or two desk lights, depending on the model. For more information see, delivery contents.

Connect the 4-pin XLR connector to the desk light connectors on the rear panel. The desk lights are connected.

To adjust the light level, see the Desk Lights topic.

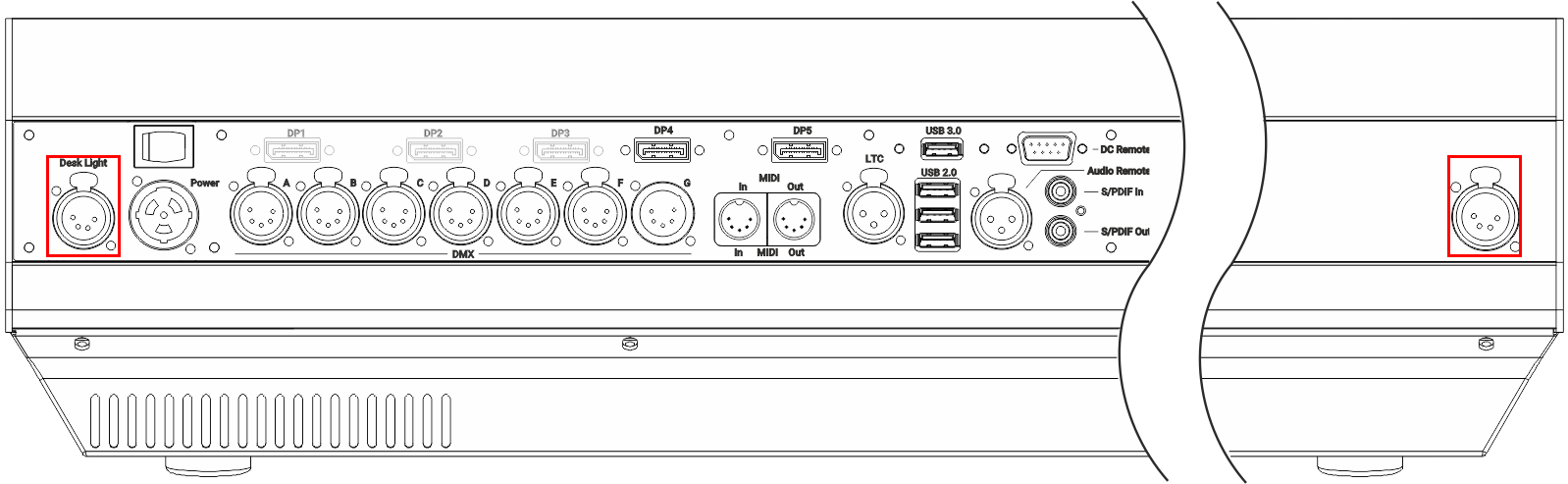

grandMA3 full-size (CRV) and light (CRV) rear panel – desk light

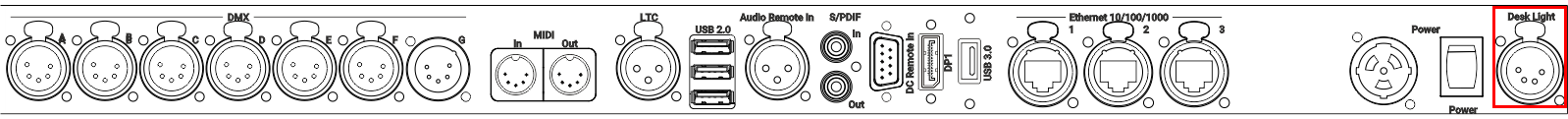

grandMA3 compact (XT) rear panel – desk light

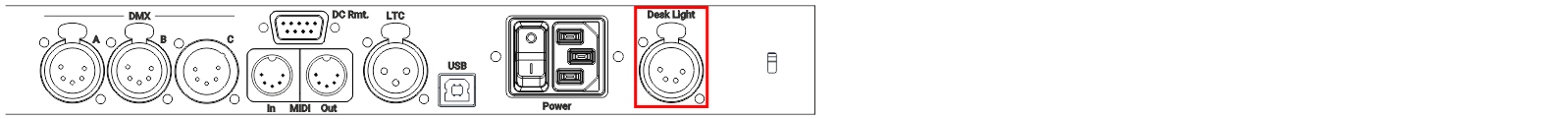

grandMA3 onPC command wing (XT) rear panel – desk light

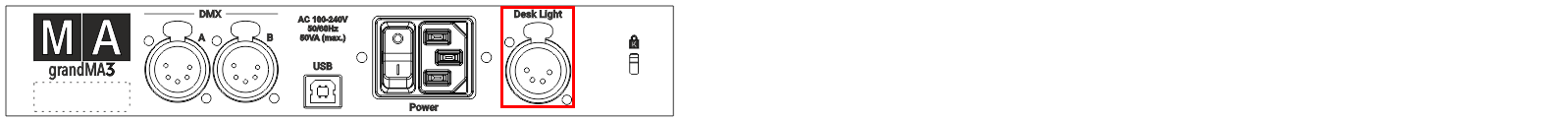

grandMA3 fader wing rear panel – desk light

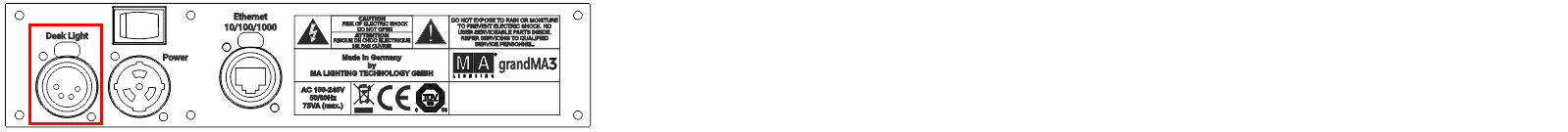

grandMA3 extension rear panel – desk light

To view the pinout of the XLR connector, refer to the topic Connector Pin Assignment.
