Connector Pin Assignment

This page gives an overview of all connectors and their respective pinouts.

---

XLR Connectors

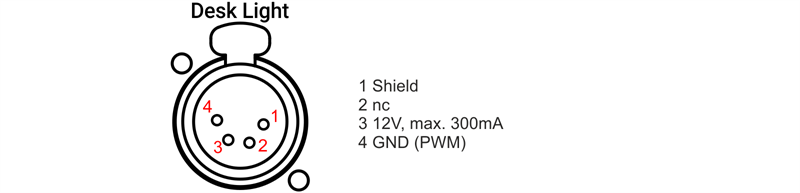

For more information, see Connect Desk Light.

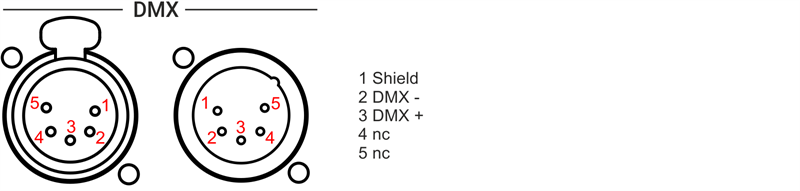

 For more information, see Connect DMX.

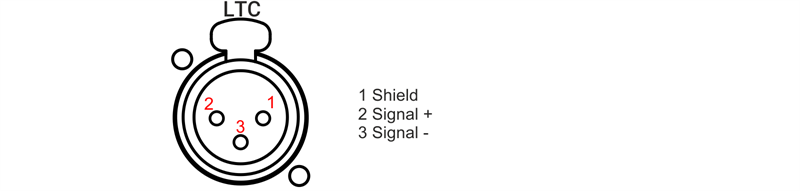

For more information, see Connect LTC.

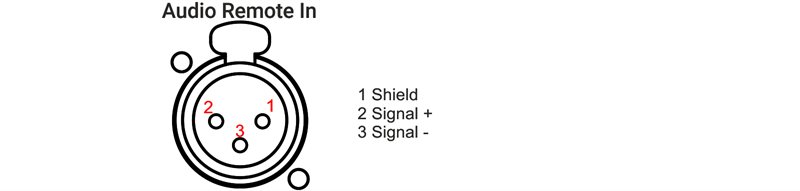

For more information, see Connect Audio In.

---

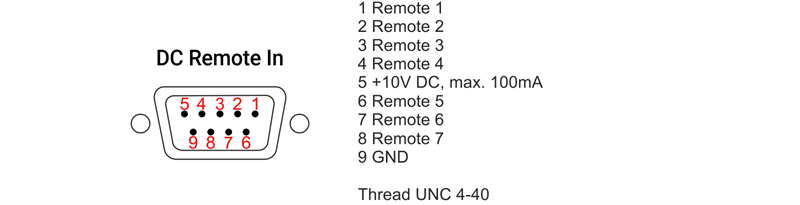

D-Sub Connectors

GPI for grandMA3 consoles,  grandMA3 onPC command wing, command wing XT
